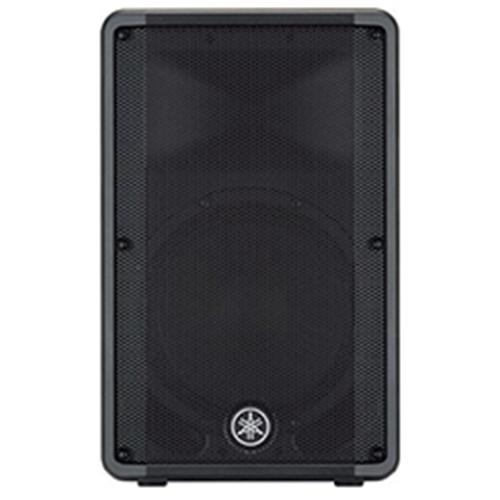

YAMAHA DBR12 Powered Speaker 2-Way Bi-Amp
Product Description:
- 2-Way, Bi-Amp Powered Bass Reflex Type Speaker with 1000 Watt Dynamic / 465 Watt Cont.
Output.
- High Performance Class-D Amplifier Capable of Producing Up to 1000 Watts of Power, Delivered
with Remarkable Clarity and Dynamic Characteristics.
- High Power Output Woofers Deliver Well-Defined, Powerful Bass with Minimal Distortion, 1"
Precision Compression Driver Produces Accurate Mid-Range and High Frequencies.
- Easy-To-Use Onboard 2-Channel Mixer. Channel 1 Combo Jack Accepts both XLR and TRS Phone
Allowing for Either Mic or Line Level Input Signals. Channel 2 Combo Jack Accepts Both XLR
and TRS Phone Plus an RCA Pin Jack for Input from CD Player or Other Stereo Ling-Level
Devices. Onboard Mixer Allows you to Select Either CH1 + CH2 MIX to Mix the Signal of CH1
and CH2, or CH1 THRU to Pass the Signal From Ch1 Only.
- Smart Enclosure Design Features Fifty Degree Wedge Angle for Floor Monitoring. Symmetrical
Shape Allows for a Mirror-Mode Floor Monitoring System in Symmetrical or Stereo Sound
Field Setups.
- 52 Hz - 20 kHz. Frequency Range.
- Components: LF 12" Diameter Cone, 2" Voice Coil (Ferrite Magnet). HF 1" Diaphragm, 1" Throat
Compression Driver (Ferrite Magnet).
- 2.1 kHz. Crossover: FIR-X Tuning (Linear Phrase FIR Filter).
- Connectors INPUT1: Single Combo Jack, INPUT2: Single Combo Jack plus RCA Pin X 2
(Unbalanced), OUTPUT: Single XLR3-32 (CH1 Parallel Through or CH1 + CH2 Mix)
- Black Plastic Enclosure with Dual Side Handles and 35mm Pole Socket.
- Flying / mounting Hardware: Bottom X 2 (Fit for M8 x 15mm Eyebolts).
- Dimensions 14.8" Wide X 23.7" High X 13.7" Deep. Overall Weight 23.2 Lbs.
For additional information and availability call / text 570-326-2094 or email [email protected]m
Model: | DBR12 |
Manufacturer: | YAMAHA |
